Tree::CubeTree Class Reference

#include <cubetree.h>

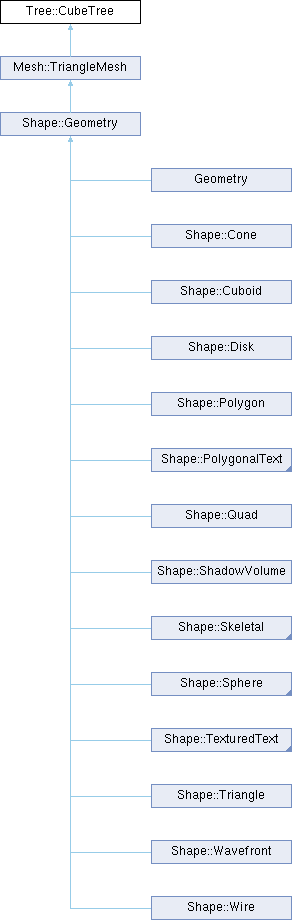

Inheritance diagram for Tree::CubeTree:

Classes
class	Branch
class	Leaf
class	Node

Public Member Functions
	CubeTree ()
	CubeTree (const Vertex3fArray &vertex)
	CubeTree (const CubeTree &)
virtual	~CubeTree ()
bool	hasDuplicates ()
	operator const Branch & () const
	operator const Branch * () const
	operator HeapArray< Leaf * > ()
bool	operator() (const Vertex3f &vA, const Vertex3f &vB) const
Leaf *	nearest (const Vertex3f &vertex)
Leaf *	find (const Vertex3f &vertex, float precision=0.0f) const
void	erase (Leaf *pLeaf)
void	update (Handle index, const Vertex3f &vertex)
void	update ()
Handle	insert (const Vertex3f &vertex)
HeapArray< Handle >	insert (const Vector3fArray &list)
template<typename INDICES >
Vector3fArray	getVertices (const INDICES &c) const
Vector3fArray	getVertices (bool unique=false) const
HeapArray< Leaf * >	getLeaves () const
const Leaf &	operator[] (Handle index) const
Handle	operator[] (const Vertex3f &v) const
const Vertex3f &	back () const
const Vertex3f &	front () const
HeapArray< Leaf * >::iterator	begin ()
HeapArray< Leaf * >::iterator	end ()
HeapArray< Leaf * >::const_iterator	begin () const
HeapArray< Leaf * >::const_iterator	end () const
size_t	size () const
void	clear ()

Detailed Description

AKA: Octree Implements and CubeTree node.

Constructor & Destructor Documentation

CubeTree() [1/3]

Tree::CubeTree::CubeTree

(

)

CubeTree() [2/3]

Tree::CubeTree::CubeTree

(

const Vertex3fArray &

vertex

)

CubeTree storage of 3D vertices with support for duplicate values. A Leaf node holds a counter indicating the number of duplicates stored.

Parameters

An	array of vertices.

CubeTree() [3/3]

Tree::CubeTree::CubeTree

(

const CubeTree &

)

~CubeTree()

virtual Tree::CubeTree::~CubeTree ( )

virtual

Member Function Documentation

back()

const Vertex3f & Tree::CubeTree::back ( ) const

inline

begin() [1/2]

HeapArray< Leaf * >::iterator Tree::CubeTree::begin ( )

inline

begin() [2/2]

HeapArray< Leaf * >::const_iterator Tree::CubeTree::begin ( ) const

inline

clear()

void Tree::CubeTree::clear

(

)

end() [1/2]

HeapArray< Leaf * >::iterator Tree::CubeTree::end ( )

inline

end() [2/2]

HeapArray< Leaf * >::const_iterator Tree::CubeTree::end ( ) const

inline

erase()

void Tree::CubeTree::erase

(

Leaf *

pLeaf

)

Removes and deletes this leaf.

Parameters

Leaf	object to remove;

find()

Leaf * Tree::CubeTree::find	(	const Vertex3f &	vertex,
		float	precision = 0.0f ) const

front()

const Vertex3f & Tree::CubeTree::front ( ) const

inline

getLeaves()

HeapArray< Leaf * > Tree::CubeTree::getLeaves

(

)

const

getVertices() [1/2]

Vector3fArray Tree::CubeTree::getVertices

(

bool

unique = false

)

const

getVertices() [2/2]

template<typename INDICES >

Vector3fArray Tree::CubeTree::getVertices ( const INDICES & c ) const

inline

Returns

The container of vertices.

hasDuplicates()

bool Tree::CubeTree::hasDuplicates

(

)

insert() [1/2]

HeapArray< Handle > Tree::CubeTree::insert

(

const Vector3fArray &

list

)

Returns

An array of indices for the given Leaf pointers containing the vertices;

insert() [2/2]

Handle Tree::CubeTree::insert

(

const Vertex3f &

vertex

)

Returns

The index of the Leaf pointer containing the vertex;

nearest()

Leaf * Tree::CubeTree::nearest

(

const Vertex3f &

vertex

)

Parameters

The	vertex to search the tree.

Returns

The closest Leaf in the tree to the vertex passed.

operator const Branch &()

Tree::CubeTree::operator const Branch & ( ) const

inline

operator const Branch *()

Tree::CubeTree::operator const Branch * ( ) const

inline

operator HeapArray< Leaf * >()

Tree::CubeTree::operator HeapArray< Leaf * > ( )

inline

Returns

An array of Leaf pointers inserted by iteration of the tree. NOTE: There are no duplicate Leaves.

operator()()

bool Tree::CubeTree::operator()	(	const Vertex3f &	vA,
		const Vertex3f &	vB ) const

operator[]() [1/2]

Handle Tree::CubeTree::operator[]

(

const Vertex3f &

v

)

const

Returns

The base-index of the vertex within pLeaf.

operator[]() [2/2]

const Leaf & Tree::CubeTree::operator[]

(

Handle

index

)

const

Returns

Reference to the Vertex at the given index.

size()

size_t Tree::CubeTree::size ( ) const

inline

Returns

The number of vertices stored in this tree. NOTE: The Array pLeaf may hold duplicate pointer references.

update() [1/2]

void Tree::CubeTree::update

(

)

Removes all branches and leaves, and reinserts all leaves. This function should be called any time a leaf has been modified.

update() [2/2]

void Tree::CubeTree::update	(	Handle	index,
		const Vertex3f &	vertex )

Updates the Leaf at the given index. Duplicate indices will be unassociated with this Leaf if the index is == Leaf::baseIndex.

Parameters

Index

of Leaf object to update;

---

The documentation for this class was generated from the following file:

• src/physics/cubetree.h
