Scene Class Reference

#include <scene.h>

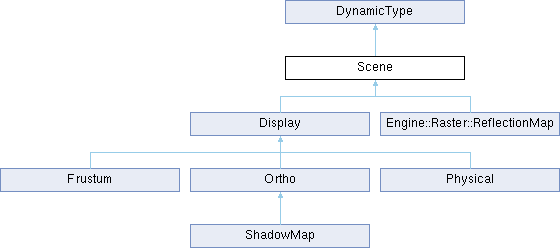

Inheritance diagram for Scene:

Classes
struct	SortOpaqueObjects
struct	SortTransparentObjects

Public Types
typedef List< GeometricBase * >	GeometricBaseList

Public Member Functions
	Scene (const Matrix4f &projectionMatrix, float nearZClip, float farZClip)
virtual	~Scene ()
virtual void	renderMaterialLists ()=0
virtual void	clearMaterialLists ()=0
virtual void	addMaterialList (const Surface::MaterialList &pMaterialList)=0
virtual void	removeGeometricObject (GeometricBase *pObject)
virtual void	removeGeometricObject (Node *pObject)
virtual void	createModel ()
virtual void	addMaterials ()
void	queueGeometricObject (GeometricBase *pObject)
void	queueGeometricObject (Node *pObject)
bool	hasFrameBuffer (FrameBuffer *pFrameBuffer)
void	addFrameBuffer (FrameBuffer *pFrameBuffer)
void	removeFrameBuffer (FrameBuffer *pFrameBuffer)
bool	inDisplayArea (GeometricBase *pObject)
bool	inDisplayArea ()
const Matrix4f &	getModel (GeometricBase *pObject)
const UnorderedMap< Node *, Matrix4f > &	getNodeModel () const
Primitive3D::AABoundingBox	getAABoundingBox ()
Primitive3D::AABoundingBox	getAABoundingBox (GeometricBase *pObject)
Primitive3D::AABoundingBox	getNDCAABoundingBox ()
Primitive3D::AABoundingBox	getNDCAABoundingBox (GeometricBase *pObject)
uint	getGeometricObjectSize ()
const GeometricBaseList &	getGeometricObject ()
void	updateCamera ()
void	renderMaterialList (Surface::MaterialList &pList, Surface::MaterialSortFunction sortFunction, float clipFactor=1.0f)
void	renderMaterial (Surface::Material *pMaterial)
void	setCamera (Camera *pCamera)
Camera *	getCamera ()
const Matrix4f &	getProjectionMatrix ()
const Matrix4f &	getViewMatrix ()
float	getNearZClip ()
float	getFarZClip ()
bool	hasGeometricObject (GeometricBase *pObject)
Vertex4f	project (const Vertex3f &vertex)
Vertex3f	unProject (const Vertex4f &vertex)
Vertex3f	localToNdc (Vertex3f point)
Vertex3f	ndcToLocal (Vertex3f point, float w)
Public Member Functions inherited from DynamicType
	DynamicType ()
template<class C >
void	addType ()
TypeID	getDerivedTypeId () const
template<class C >
const bool	isType () const
template<class C >
const C *	cast () const
template<class C >
C *	cast ()
template<class FROM , class TO >
TO *	cast ()
template<class FROM , class TO >
const TO *	cast () const

Protected Member Functions
virtual void	addGeometricObject (GeometricBase *pObject)

Protected Attributes
float	nearZClip
float	farZClip
Matrix4f	view
Matrix4f	projectionMatrix
Camera *	pCamera
GeometricBaseList	pGeometricObject
UnorderedMap< Node *, Matrix4f >	nodeModel
List< FrameBuffer * >	pFrameBuffer

Friends
class	Engine::Application
struct	Surface::Material::Initializer

Member Typedef Documentation

GeometricBaseList

typedef List< GeometricBase * > Scene::GeometricBaseList

Constructor & Destructor Documentation

Scene()

Scene::Scene	(	const Matrix4f &	projectionMatrix,
		float	nearZClip,
		float	farZClip )

~Scene()

virtual Scene::~Scene ( )

virtual

Member Function Documentation

addFrameBuffer()

void Scene::addFrameBuffer

(

FrameBuffer *

pFrameBuffer

)

addGeometricObject()

virtual void Scene::addGeometricObject ( GeometricBase * pObject )

protectedvirtual

Raster & Render the GeometricObject in this Scene.

Parameters

The	GeometricBase object containing at least 1 Material.

Reimplemented in Engine::Raster::ReflectionMap, Physical, and ShadowMap.

addMaterialList()

virtual void Scene::addMaterialList ( const Surface::MaterialList & pMaterialList )

pure virtual

Implemented in Display, Engine::Raster::ReflectionMap, and ShadowMap.

addMaterials()

virtual void Scene::addMaterials ( )

virtual

Reimplemented in ShadowMap.

clearMaterialLists()

virtual void Scene::clearMaterialLists ( )

pure virtual

Implemented in Display, Engine::Raster::ReflectionMap, and ShadowMap.

createModel()

virtual void Scene::createModel ( )

virtual

Reimplemented in Engine::Raster::ReflectionMap, Physical, and ShadowMap.

getAABoundingBox() [1/2]

Primitive3D::AABoundingBox Scene::getAABoundingBox

(

)

getAABoundingBox() [2/2]

Primitive3D::AABoundingBox Scene::getAABoundingBox

(

GeometricBase *

pObject

)

getCamera()

Camera * Scene::getCamera ( )

inline

getFarZClip()

float Scene::getFarZClip ( )

inline

getGeometricObject()

const GeometricBaseList & Scene::getGeometricObject ( )

inline

getGeometricObjectSize()

uint Scene::getGeometricObjectSize ( )

inline

getModel()

const Matrix4f & Scene::getModel

(

GeometricBase *

pObject

)

getNDCAABoundingBox() [1/2]

Primitive3D::AABoundingBox Scene::getNDCAABoundingBox

(

)

getNDCAABoundingBox() [2/2]

Primitive3D::AABoundingBox Scene::getNDCAABoundingBox

(

GeometricBase *

pObject

)

getNearZClip()

float Scene::getNearZClip ( )

inline

getNodeModel()

const UnorderedMap< Node *, Matrix4f > & Scene::getNodeModel ( ) const

inline

getProjectionMatrix()

const Matrix4f & Scene::getProjectionMatrix ( )

inline

getViewMatrix()

const Matrix4f & Scene::getViewMatrix ( )

inline

hasFrameBuffer()

bool Scene::hasFrameBuffer

(

FrameBuffer *

pFrameBuffer

)

hasGeometricObject()

bool Scene::hasGeometricObject

(

GeometricBase *

pObject

)

inDisplayArea() [1/2]

bool Scene::inDisplayArea

(

)

Returns

True if this Scene is inside the display-area(bounds).

inDisplayArea() [2/2]

bool Scene::inDisplayArea

(

GeometricBase *

pObject

)

Returns

True if this GeometricBase object is inside the display-area(bounds).

localToNdc()

Vertex3f Scene::localToNdc

(

Vertex3f

point

)

Converts local(model) space coordinate to normalized-device coordinate.

ndcToLocal()

Vertex3f Scene::ndcToLocal	(	Vertex3f	point,
		float	w )

Converts a normalized-device coordinate to local(model) space coordinate.

project()

Vertex4f Scene::project

(

const Vertex3f &

vertex

)

Transform a given vertex to clip-space for this view and projection.

Returns

The respective device(screen)-space coordinate for this Scene.

queueGeometricObject() [1/2]

void Scene::queueGeometricObject

(

GeometricBase *

pObject

)

Queue a GeometricObject to be added to this Scene, when all the objects Materials are initialized. This is a non-atomic operation.

Parameters

The	GeometricBase object containing at least 1 Material.

queueGeometricObject() [2/2]

void Scene::queueGeometricObject

(

Node *

pObject

)

Queue the Node object's GeometricBase children to be added to this Scene.

Parameters

The	GeometricBase object containing at least 1 Material.

removeFrameBuffer()

void Scene::removeFrameBuffer

(

FrameBuffer *

pFrameBuffer

)

removeGeometricObject() [1/2]

virtual void Scene::removeGeometricObject ( GeometricBase * pObject )

virtual

Parameters

The	GeometricBase object containing at least 1 Material.

Reimplemented in Engine::Raster::ReflectionMap, Physical, and ShadowMap.

removeGeometricObject() [2/2]

virtual void Scene::removeGeometricObject ( Node * pObject )

virtual

Remove the Node object's GeometricBase children from this Scene.

Parameters

The	GeometricBase object containing at least 1 Material.

renderMaterial()

void Scene::renderMaterial

(

Surface::Material *

pMaterial

)

renderMaterialList()

void Scene::renderMaterialList	(	Surface::MaterialList &	pList,
		Surface::MaterialSortFunction	sortFunction,
		float	clipFactor = 1.0f )

renderMaterialLists()

virtual void Scene::renderMaterialLists ( )

pure virtual

Implemented in Display, Engine::Raster::ReflectionMap, Physical, and ShadowMap.

setCamera()

void Scene::setCamera

(

Camera *

pCamera

)

unProject()

Vertex3f Scene::unProject

(

const Vertex4f &

vertex

)

Undo a transform from clip-space for a given vertex for this view and projection.

Returns

The respective local-space coordinate from this Scene.

updateCamera()

void Scene::updateCamera

(

)

Friends And Related Symbol Documentation

Engine::Application

friend class Engine::Application

friend

Surface::Material::Initializer

friend struct Surface::Material::Initializer

friend

Member Data Documentation

farZClip

float Scene::farZClip

protected

Far (Z-) clip plane. This is used to create the projection matrix.

nearZClip

float Scene::nearZClip

protected

Near (Z+) clip plane. This is used to create the projection matrix.

nodeModel

UnorderedMap< Node *, Matrix4f > Scene::nodeModel

protected

The composed model-matrix for each node.

pCamera

Camera* Scene::pCamera

protected

Pointer to the scene camera.

pFrameBuffer

List< FrameBuffer * > Scene::pFrameBuffer

protected

pGeometricObject

GeometricBaseList Scene::pGeometricObject

protected

The nodes containing geometry and materials to render.

projectionMatrix

Matrix4f Scene::projectionMatrix

protected

The projection applied to the corresponding object models and view.

view

Matrix4f Scene::view

protected

The view for this scene. If no Camera exists for this scene pCamera will hold the address of view.

---

The documentation for this class was generated from the following file:

• src/raster/scene/scene.h
