Engine::Raster::PolygonalText Class Reference

#include <polygonaltext.h>

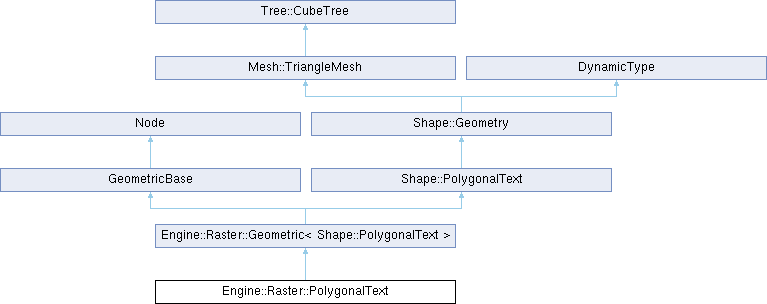

Inheritance diagram for Engine::Raster::PolygonalText:
Engine::Raster::Geometric< Shape::PolygonalText > GeometricBase Shape::PolygonalText Node Shape::Geometry Mesh::TriangleMesh DynamicType Tree::CubeTree

Public Member Functions

 PolygonalText (const Shape::PolygonalText::Attribute &attribute)

 PolygonalText (const Shape::PolygonalText::Attribute &attribute, const Vector4f &color)

 PolygonalText (const Shape::PolygonalText::Attribute &attribute, const Vector4f &color, const Vector4f &outlineColor, float outlineWidth)

virtual ~PolygonalText ()

void setText (const char *text)

void setText (const String &text)

String getText () const

- Public Member Functions inherited from Engine::Raster::Geometric< Shape::PolygonalText >
 Geometric (const Shape::PolygonalText &geometry)

 Geometric (const typename Shape::PolygonalText::Attribute &attribute)

 Geometric (const typename Shape::PolygonalText::Attribute &attribute, DrawPrimitive drawPrimitive)

- Public Member Functions inherited from GeometricBase
 GeometricBase (Shape::Geometry *pGeometry)

 operator Shape::Geometry * () const

virtual ~GeometricBase ()

virtual void initialize (Scene *pScene, bool addObjectToScene)

void addScene (Scene *pScene)

void removeScene (Scene *pScene)

const Application::SceneList & getScene ()

const Surface::MaterialListgetMaterialList ()

bool hasTransparency ()

bool hasMaterial (Surface::Material *pMaterial)

virtual void addMaterial (Surface::Material *pMaterial)

template<class C >
C * getMaterial ()

void removeMaterial (Surface::Material *pMaterial)

Shape::GeometrygetGeometry () const

virtual Primitive3D::AABoundingBox getAABoundingBox () const

float getBoundingRadius () const

- Public Member Functions inherited from Shape::PolygonalText
 PolygonalText (const Attribute &attribute)

float getWidth ()

float getHeight ()

void setText (const String &text)

const String getText ()

void createGeometryString ()

- Public Member Functions inherited from Shape::Geometry
 Geometry (const TriangleMesh &mesh, const Attribute &attribute)

 Geometry (const Attribute &attribute)

void operator+= (const TriangleMesh &other)

virtual ~Geometry ()

virtual void clear ()

virtual void flagDirty ()

virtual Vertex3fArray createVertexArray ()

virtual Mesh::VertexIndexArray createIndexArray ()

virtual Vector3fArray createNormalArray ()

virtual Primitive3D::TriangleArray createTriangles (const Matrix4f &mat=Matrix4f::identity)

virtual float getBoundingRadius (const Matrix3f &matrix=Matrix3f::identity)

virtual Primitive3D::AABoundingBox getAABoundingBox (const Matrix4f &matrix=Matrix4f::identity)

void update ()

const AttributegetAttribute () const

DrawPrimitive getDrawPrimitive ()

void setDrawPrimitive (DrawPrimitive drawPrimitive)

String verticesToCArray ()

String indicesToCArray ()

Primitive3D::Capsule createCapsule (const Matrix4f &mat=Matrix4f::identity)

Vertex3f getFaceNormal (Mesh::FaceIndex index)

Vertex3f getFaceCentroid (Mesh::FaceIndex index)

void transformFaces (const Matrix4f &mat)

void rotateFaces (float angle, const Vector3f &vec)

void translateFaces (const Vector3f &vec)

void scaleFaces (float scale)

void scaleFaces (const Vector3f &vec)

void clampMaxFaces (const Vector3f &vec)

void clampMinFaces (const Vector3f &vec)

void transformFace (const Matrix4f &mat, Mesh::FaceIndex iFace)

void rotateFace (float angle, const Vector3f &vec, Mesh::FaceIndex iFace)

void translateFace (const Vector3f &vec, Mesh::FaceIndex iFace)

void scaleFace (float scale, Mesh::FaceIndex iFace)

void scaleFace (const Vector3f &vec, Mesh::FaceIndex iFace)

void clampMaxFace (const Vector3f &vec, Mesh::FaceIndex iFace)

void clampMinFace (const Vector3f &vec, Mesh::FaceIndex iFace)

const Vertex3fgetVertex (uint index) const

Primitive3D::Triangle getPrimitiveTriangle (uint index) const

void setBoundingRadius (float radius)

bool isAABoundingBoxUpdated ()

void normalize ()

void extrudeAndVolumizeFace (Mesh::FaceIndex index, float distance)

- Public Member Functions inherited from Mesh::TriangleMesh
 TriangleMesh ()

 TriangleMesh (const Vertex3fArray &vertex)

 TriangleMesh (const TriangleMesh &other)

void operator+= (const TriangleMesh &other)

 ~TriangleMesh ()

void clear ()

VertexIndex addVertex (const Vertex3f &vertex)

VertexIndexArray addVertexArray (const Vertex3fArray &array)

VertexIndexSet getFaceVertexIndices (const FaceIndex fI) const

VertexIndexSet getFaceVertexIndices (const Face &face) const

VertexIndexArray getFaceContour (FaceIndex fI) const

FaceIndex findFace (const VertexIndexArray &array) const

Vertex3f getFaceNormal (const Face &face) const

Vertex3f getFaceNormal (FaceIndex fI) const

TriangleIndex findTriangle (const Triangle &triangle) const

bool hasTriangle (VertexIndex vA, VertexIndex vB, VertexIndex vC) const

TriangleIndex addTriangle (VertexIndex iA, VertexIndex iB, VertexIndex iC, FaceIndex iF)

TriangleIndex addTriangle (const Triangle &t, FaceIndex iF)

TriangleIndex addTriangle (const Triangle &triangle)

FaceIndexArray findFaces (const Triangle &triangle)

void removeTriangle (TriangleIndex index)

HalfEdgeIndex addHalfEdge (const HalfEdge &halfEdge)

void removeHalfEdge (const HalfEdgeIndex halfEdgeIndex)

const HalfEdgeArraygetHalfEdge () const

const TriangleArraygetTriangle () const

const FaceArraygetFace () const

FacegetFace (uint index)

Vertex3fArray createContour (const FaceIndex fI) const

HalfEdgeArray getFaceHalfEdges (const FaceIndex fI) const

HalfEdgeIndexArray getFaceHalfEdgeIndices (const FaceIndex fI) const

const HalfEdgegetHalfEdge (const VertexIndex a, const VertexIndex b) const

HalfEdgeIndex getHalfEdgeIndex (const VertexIndex a, const VertexIndex b) const

const HalfEdgeIndexTablegetHalfEdgeIndexTable () const

bool isHalfEdge (const VertexIndex a, const VertexIndex b) const

bool isHalfEdge (HalfEdgeIndex index) const

bool isFullEdge (const VertexIndex a, const VertexIndex b) const

bool isFullEdge (HalfEdgeIndex index) const

FaceIndex addFace (const Face &face=Face())

void removeFace (FaceIndex faceIndex)

VertexIndexArray shortestPath (Mesh::VertexIndex startVertexIndex, Mesh::VertexIndex endVertexIndex)

Primitive3D::Triangle createPrimitveTriangle (const Triangle &triangle) const

Primitive3D::Triangle createPrimitveTriangle (const TriangleIndex index) const

Primitive3D::Segment createPrimitveSegment (const HalfEdge &he) const

Primitive3D::Segment createPrimitveSegment (const HalfEdgeIndex index) const

- Public Member Functions inherited from Tree::CubeTree
 CubeTree ()

 CubeTree (const Vertex3fArray &vertex)

 CubeTree (const CubeTree &)

virtual ~CubeTree ()

bool hasDuplicates ()

 operator const Branch & () const

 operator const Branch * () const

 operator HeapArray< Leaf * > ()

bool operator() (const Vertex3f &vA, const Vertex3f &vB) const

Leafnearest (const Vertex3f &vertex)

Leaffind (const Vertex3f &vertex, float precision=0.0f) const

void erase (Leaf *pLeaf)

void update (Handle index, const Vertex3f &vertex)

void update ()

Handle insert (const Vertex3f &vertex)

HeapArray< Handle > insert (const Vector3fArray &list)

template<typename INDICES >
Vector3fArray getVertices (const INDICES &c) const

Vector3fArray getVertices (bool unique=false) const

HeapArray< Leaf * > getLeaves () const

const Leafoperator[] (Handle index) const

Handle operator[] (const Vertex3f &v) const

const Vertex3fback () const

const Vertex3ffront () const

HeapArray< Leaf * >::iterator begin ()

HeapArray< Leaf * >::iterator end ()

HeapArray< Leaf * >::const_iterator begin () const

HeapArray< Leaf * >::const_iterator end () const

size_t size () const

void clear ()

- Public Member Functions inherited from DynamicType
 DynamicType ()

template<class C >
void addType ()

TypeID getDerivedTypeId () const

template<class C >
const bool isType () const

template<class C >
const C * cast () const

template<class C >
C * cast ()

template<class FROM , class TO >
TO * cast ()

template<class FROM , class TO >
const TO * cast () const


Additional Inherited Members

- Public Types inherited from Mesh::TriangleMesh
typedef HeapArray< HalfEdgeIndexArrayHalfEdgeIndexTable

- Static Public Member Functions inherited from Mesh::TriangleMesh
static bool isHalfEdge (const VertexIndex a, const VertexIndex b, const HalfEdgeIndexTable &table)

static bool isHalfEdge (const HalfEdge he, const HalfEdgeIndexTable &table)

static bool isFullEdge (const VertexIndex a, const VertexIndex b, const HalfEdgeIndexTable &table)

static bool isFullEdge (const HalfEdge he, const HalfEdgeIndexTable &table)

static HalfEdgeIndex getHalfEdgeIndex (const VertexIndex a, const VertexIndex b, const HalfEdgeIndexTable &table)

- Public Attributes inherited from Mesh::TriangleMesh
bool planar

float boundingRadius

- Protected Attributes inherited from GeometricBase
Surface::MaterialList pMaterial

- Protected Attributes inherited from Shape::PolygonalText
Attribute attribute

uint displayedTextSize

- Protected Attributes inherited from Shape::Geometry
Attribute attribute

bool cubeTreeUpdated

- Protected Attributes inherited from Mesh::TriangleMesh
HalfEdgeIndexTable halfEdgeIndexTable

HalfEdgeArray halfEdge

TriangleArray triangle

FaceArray face


Constructor & Destructor Documentation

◆ PolygonalText() [1/3]

Engine::Raster::PolygonalText::PolygonalText ( const Shape::PolygonalText::Attribute & attribute)
Parameters
Theattributes of the polygon-text

◆ PolygonalText() [2/3]

Engine::Raster::PolygonalText::PolygonalText ( const Shape::PolygonalText::Attribute & attribute,
const Vector4f & color )

Render polygonal text without an outline.

Parameters
Theattributes of the polygon-text
Thecolor of the text.

◆ PolygonalText() [3/3]

Engine::Raster::PolygonalText::PolygonalText ( const Shape::PolygonalText::Attribute & attribute,
const Vector4f & color,
const Vector4f & outlineColor,
float outlineWidth )

Render polygonal text with an outline.

Parameters
Theattributes of the polygon-text
Thecolor of the text.
Thecolor of the outline.

◆ ~PolygonalText()

virtual Engine::Raster::PolygonalText::~PolygonalText ( )
virtual

Reimplemented from Shape::PolygonalText.

Member Function Documentation

◆ getText()

String Engine::Raster::PolygonalText::getText ( ) const
inline

◆ setText() [1/2]

void Engine::Raster::PolygonalText::setText ( const char * text)

◆ setText() [2/2]

void Engine::Raster::PolygonalText::setText ( const String & text)
inline

The documentation for this class was generated from the following file:
