Sequence::Rotation< INTERPOLATION, CLASS > Class Template Reference

#include <rotation.h>

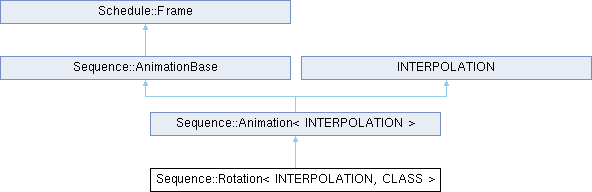

Inheritance diagram for Sequence::Rotation< INTERPOLATION, CLASS >:

Public Member Functions
	Rotation (CLASS *pClass, uint frameSize)
	Rotation (CLASS *pClass, float angle, const Vector3f &axis, const AnimationBase::Attribute &attribute)
Public Member Functions inherited from Sequence::Animation< INTERPOLATION >
	Animation (const Attribute &attribute, bool easeDirection=false)
virtual	~Animation ()
void	computeSteps ()
Public Member Functions inherited from Sequence::AnimationBase
	AnimationBase (const Attribute &attribute)
virtual	~AnimationBase ()
const Attribute &	getAttribute ()
virtual void	reset ()
void	expire ()
void	printSteps ()
bool	done ()
Public Member Functions inherited from Schedule::Frame
	Frame ()

Protected Member Functions
virtual void	vNext ()
Protected Member Functions inherited from Sequence::AnimationBase
void	reverseSteps ()
Protected Member Functions inherited from Schedule::Frame
virtual	~Frame ()

Protected Attributes
CLASS *	pClass
float	angle
Vector3f	axis
Protected Attributes inherited from Sequence::Animation< INTERPOLATION >
bool	easeDirection
Protected Attributes inherited from Sequence::AnimationBase
Attribute	attribute
HeapArray< double >	step
uint	frame

Additional Inherited Members
Public Types inherited from Sequence::AnimationBase
enum	LoopType {   LOOP_NONE ,   LOOP_REPEAT ,   LOOP_REVERSE_STEP_REPEAT ,   LOOP_REVERSE_INTERPOLATION_REPEAT ,   LOOP_REVERSE_INTERPOLATION_REVERSE_STEP_REPEAT }

Detailed Description

template<class INTERPOLATION, class CLASS>
class Sequence::Rotation< INTERPOLATION, CLASS >

Supports both Matrix and Vector classes.

Constructor & Destructor Documentation

Rotation() [1/2]

template<class INTERPOLATION , class CLASS >

Sequence::Rotation< INTERPOLATION, CLASS >::Rotation	(	CLASS *	pClass,
		uint	frameSize )

Rotation() [2/2]

template<class INTERPOLATION , class CLASS >

Sequence::Rotation< INTERPOLATION, CLASS >::Rotation	(	CLASS *	pClass,
		float	angle,
		const Vector3f &	axis,
		const AnimationBase::Attribute &	attribute )

Member Function Documentation

vNext()

template<class INTERPOLATION , class CLASS >

void Sequence::Rotation< INTERPOLATION, CLASS >::vNext ( )

protectedvirtual

Apply the animation for the given frame.

Returns

void.

Implements Sequence::AnimationBase.

Member Data Documentation

angle

template<class INTERPOLATION , class CLASS >

float Sequence::Rotation< INTERPOLATION, CLASS >::angle

protected

Euclidean angle. This can represent a spatial, temporal delta for any parameter.

axis

template<class INTERPOLATION , class CLASS >

Vector3f Sequence::Rotation< INTERPOLATION, CLASS >::axis

protected

The vector axis to rotate about.

pClass

template<class INTERPOLATION , class CLASS >

CLASS* Sequence::Rotation< INTERPOLATION, CLASS >::pClass

protected

The CLASS to apply the animation.

---

The documentation for this class was generated from the following file:

• src/schedule/sequence/rotation.h
