Render::Component Class Reference

#include <component.h>

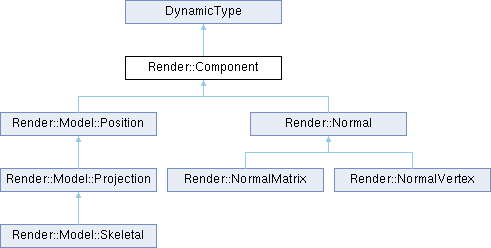

Inheritance diagram for Render::Component:

Classes
class	Attribute

Public Member Functions
	Component (const Attribute &attribute)
virtual	~Component ()
const Attribute &	getAttribute ()
virtual void	create (Material *pMaterial)=0
virtual void	update (Material *pMaterial)=0
virtual void	addShaderResources (Material *pMaterial)=0
virtual void	addShaderCode (Material *pMaterial)=0
Public Member Functions inherited from DynamicType
	DynamicType ()
template<class C >
void	addType ()
TypeID	getDerivedTypeId () const
template<class C >
const bool	isType () const
template<class C >
const C *	cast () const
template<class C >
C *	cast ()
template<class FROM , class TO >
TO *	cast ()
template<class FROM , class TO >
const TO *	cast () const

Protected Attributes
Attribute	attribute

Constructor & Destructor Documentation

Component()

Render::Component::Component

(

const Attribute &

attribute

)

~Component()

virtual Render::Component::~Component ( )

virtual

Member Function Documentation

addShaderCode()

virtual void Render::Component::addShaderCode ( Material * pMaterial )

pure virtual

Add shader-code for vertex, tessellation, geometry, and fragment shaders.

Implemented in Render::Model::Position, Render::Model::Projection, Render::Model::Skeletal, Render::Normal, Render::NormalMatrix, and Render::NormalVertex.

addShaderResources()

virtual void Render::Component::addShaderResources ( Material * pMaterial )

pure virtual

Add your uniforms, attributes, and varyings along with resources utilized by your shader-code modules.

Implemented in Render::Model::Position, Render::Model::Projection, Render::Model::Skeletal, Render::Normal, Render::NormalMatrix, and Render::NormalVertex.

create()

virtual void Render::Component::create ( Material * pMaterial )

pure virtual

Implemented in Render::Model::Position, Render::Model::Projection, Render::Model::Skeletal, Render::Normal, Render::NormalMatrix, and Render::NormalVertex.

getAttribute()

const Attribute & Render::Component::getAttribute ( )

inline

update()

virtual void Render::Component::update ( Material * pMaterial )

pure virtual

Implemented in Render::Model::Position, Render::Model::Projection, Render::Model::Skeletal, Render::Normal, Render::NormalMatrix, and Render::NormalVertex.

Member Data Documentation

attribute

Attribute Render::Component::attribute

protected

---

The documentation for this class was generated from the following file:

• src/surface/render/component.h
